aiPRESS servo presses for high-precision joining connections

aiPRESS servo presses are used to produce safe and reproduceable joinings. They offer optimal possibilities in customising the joining process to your needs. Process factors such as feed force, running speed, positioning time and accuracy can be adapted precisely by using a large number of optional components.

aiPRESS servo presses are serially equipped with monitor, keyboard with mouse as well as compact control cabinet with pluggable cable set. Optionally, the system can be amended with a high-quality multitouch user panel inclusive holder.

A concept that has been well proven: More than 800 IEF servo presses work reliably around the world - in rough industrial environments.

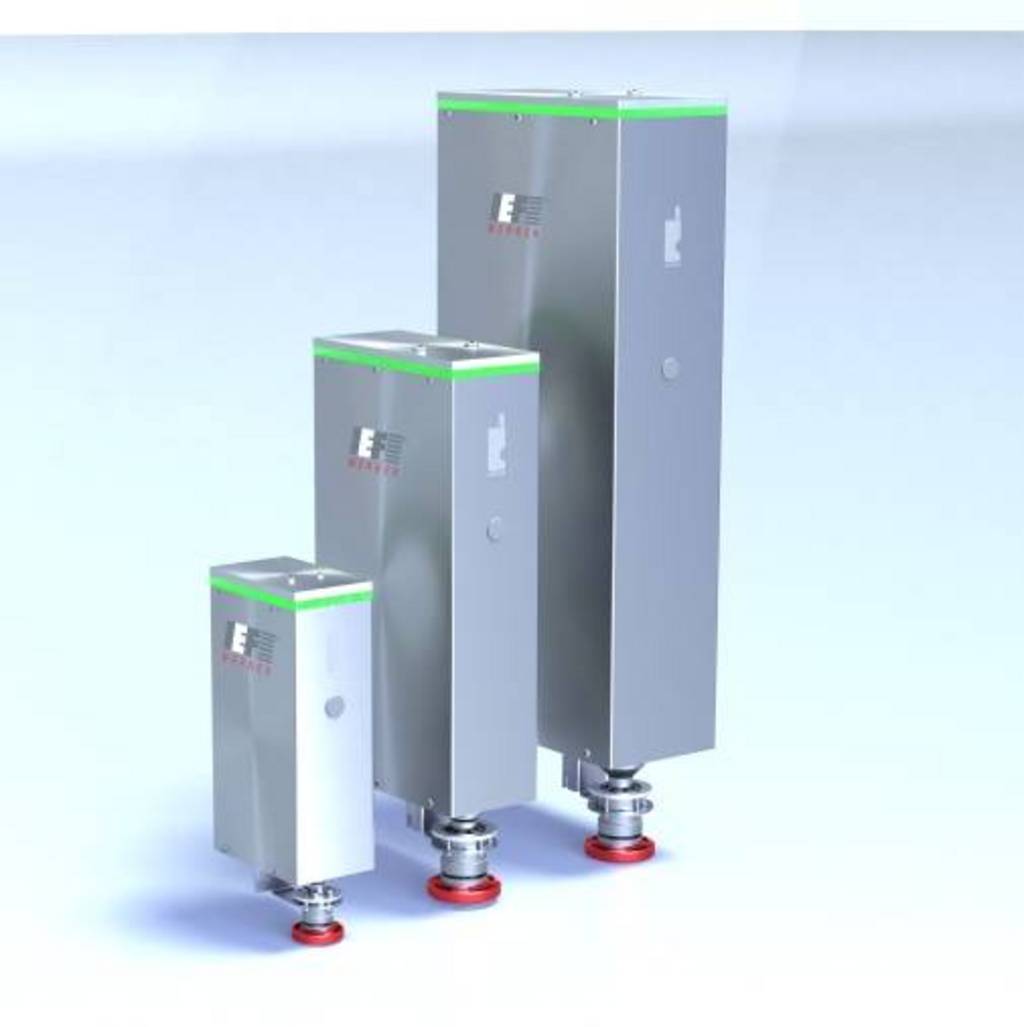

aiPRESS JM-Joining Modules to be Integrated into Your Special Machine

The servo motor joining modules aiPRESS JM can be installed in any orientation (e.g., upside down). The integration into your machine control system takes place simply via the proven press control aiQ-CONTROL.

aiQ-CONTROL enabled complete monitoring and control of press-fit or joining processes. All systems and accessory components of the aiPRESS family are extremely user-friendly and offer a high degree of flexibility for simple to highly complex joining processes. IEF-Werner joining modules are typically used in fully automated handling and assembly lines, e.g. as a joining station within a posyART transport system.

The joining modules are produced from our standard components, which are in stock and therefore we guarantee a fast delivery.

  • Control system with graphical user interface (curves, windows and force-distance barriers)
  • Position measuring system with repeat accuracy < 0.002 mm
  • Compressed air / vacuum supply directly to the press quill
  • Small size
  • High travel speed up to 150 mm / s
  • Force ranges up to 36 kN

Application examples

  • Servo press aiPRESS

    Servo press aiPRESS | IEF-Werner


    On 'Play' external media is loaded and YouTube sends you some cookies!
    Accept & Play Accept for All Videos & Play
    ×

    The aiPRESS-servo press is used to produce precise and reproducible joints. It is suitable for integration into plants but can also be used as a stand-alone system. An automatic protective cover is integrated. The conventional quill guide is replaced by a precision-guide with ball screw spindle.



  • Setting up an aiPRESS

    Do you want to see how easy it is to program an aiPRESS? On our micosite, we show an example where you can see how easy it is to set up the aiPRESS servo press. You also get many more technical information about our proven system.

  • Application example: Imprinting

    [Translate to English:]


    On 'Play' external media is loaded and YouTube sends you some cookies!
    Accept & Play Accept for All Videos & Play
    ×

    In this application the servo press aiPRESS 36 is used for reliable and reproducible stamping. The force range of the press reaches up to 36 kN. The process visualisation aiLIGHT with energy-efficient, glare-free four-colour LED technology signals the quality of each press result. The operator is thus immediately provided with all information necessary for operating the machine. For a more detailed view of the pressing result, a view of the control console is of course necessary despite the aiLIGHT. The force-displacement monitor with the ergonomic and user-friendly software aiQ-CONTROL displays the pressing processes graphically in real time and monitors the progress.

  • Application example: Testing springs

    [Translate to English:]


    On 'Play' external media is loaded and YouTube sends you some cookies!
    Accept & Play Accept for All Videos & Play
    ×

    The demo application to test springs consists of a combination of different IEF-Werner standard components. A 3-axes handling is installed in the application. This handling system with gripper picks up the springs, which are to be tested, from a nc-turning table DT 80/100, which is used as material buffer. The springs are inspectet of a camera. A combination of the manual adjusters domiLINE is doing the fine-tuning of the camera. The handling places the spring in the servo press aiPRESS, which carries out the testing and transmits the results to control.
