Cantilever axes

Cantilever axis with spindle or toothed belt drive

Cantilever axis | IEF-Werner GmbH
Cantilever axis with toothed belt drive | IEF-Werner

Cantilever axes are specialised linear units for the vertical or horizontal use. Their biggest advantage is the stationary motor. Due to special kinematics the cantilever arm can pull itself back completely from the working area - no disturbing contours remain. The cantilever axes are available with toothed belt or spindle drive.

Your individual linear system in just a few steps

inquiry configurator linear drives | IEF-Werner
Start configurator

The selection of a suitable linear system is based on various factors:

  •  Dynamics (cycle time)
  •  load (availability)
  •  moving mass (payload)
  •  repeat accuracy
  •  environmental conditions at the place of use

The new online tool supports you in configuring and requesting your linear system. With just a few clicks, you can adapt the linear system specifically to your requirements and send an enquiry to our sales team.

Cantilever axes with toothed belt drive

Module 68

Cantilever axes with toothed belt drive Module 68 | IEF-Werner
  • max. stroke: 500 mm
  • max. speed: 2 m/s
  • max. load in vertical operation: 5 kg

Module 55 ZOM

Cantilever axes with toothed belt drive Module 55 ZOM | IEF-Werner
  • max. stroke: 460 mm
  • max. speed: 2 m/s
  • max. load in vertical operation: 4 kg
  • no moving motors or cables

Module 60/33

Cantilever axes with toothed belt drive Module 60/33 | IEF-Werner
  • max. stroke: 1100 mm
  • max. speed in vertical operation: 2.2 m/s
  • max. load in vertical operation: 15 kg

Module 90/15

Cantilever axes with toothed belt drive Module 90/15 | IEF-Werner
  • max. stroke: 1000 mm
  • max. speed: 3 m/s
  • max. load in vertical operation: 15 kg

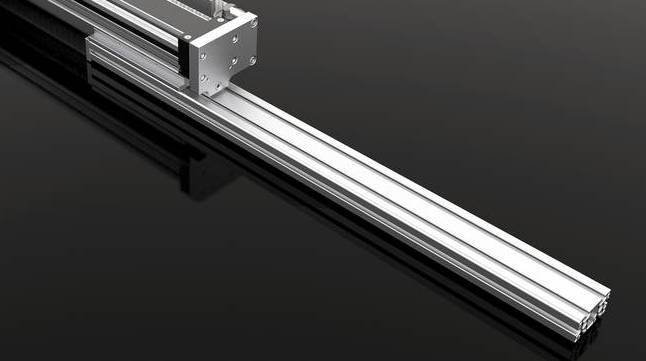

Module 90/15 telescope

Cantilever axes with toothed belt drive Module 90/15 telescope | IEF-Werner
  • max. stroke: 1400 mm
  • max. speed: 6 m/s
  • max. load in vertical operation: 5 kg

Module 160/20 ZR10

Cantilever axes with toothed belt drive Modul 160/20 ZR10 | IEF-Werner
  • max. stroke: 1500 mm
  • max. speed: 1.2 m/s
  • max. load in vertical operation: 40 kg

Cantilever axes with spindle drive

profiLINE 37 AL

Cantilever axes with spindle drive profiLINE 37 AL | IEF-Werner
  • max. stroke: 150 mm
  • repeat accuracy: +/- 0.010 mm
  • max. load in vertical operation: 1 kg
  • prepared for attachment of IEF standard motors / customer-specific motors possible



profiLINE 50 AL

Cantilever axes with spindle drive profiLINE 50 AL | IEF-Werner
  • max. stroke: 125 mm
  • repeat accuracy: +/- 0.005 mm
  • max. load in vertical operation: 2,5 kg
  • prepared for attachment of IEF standard motors / customer-specific motors possible

profiLINE 70 AL

Cantilever axes with spindle drive profiLINE 70 AL | IEF-Werner
  • max. stroke: 185 mm
  • repeat accuracy: +/- 0.003 mm
  • max. load in vertical operation: 5 kg
  • prepared for attachment of IEF standard motors / customer-specific motors possible
